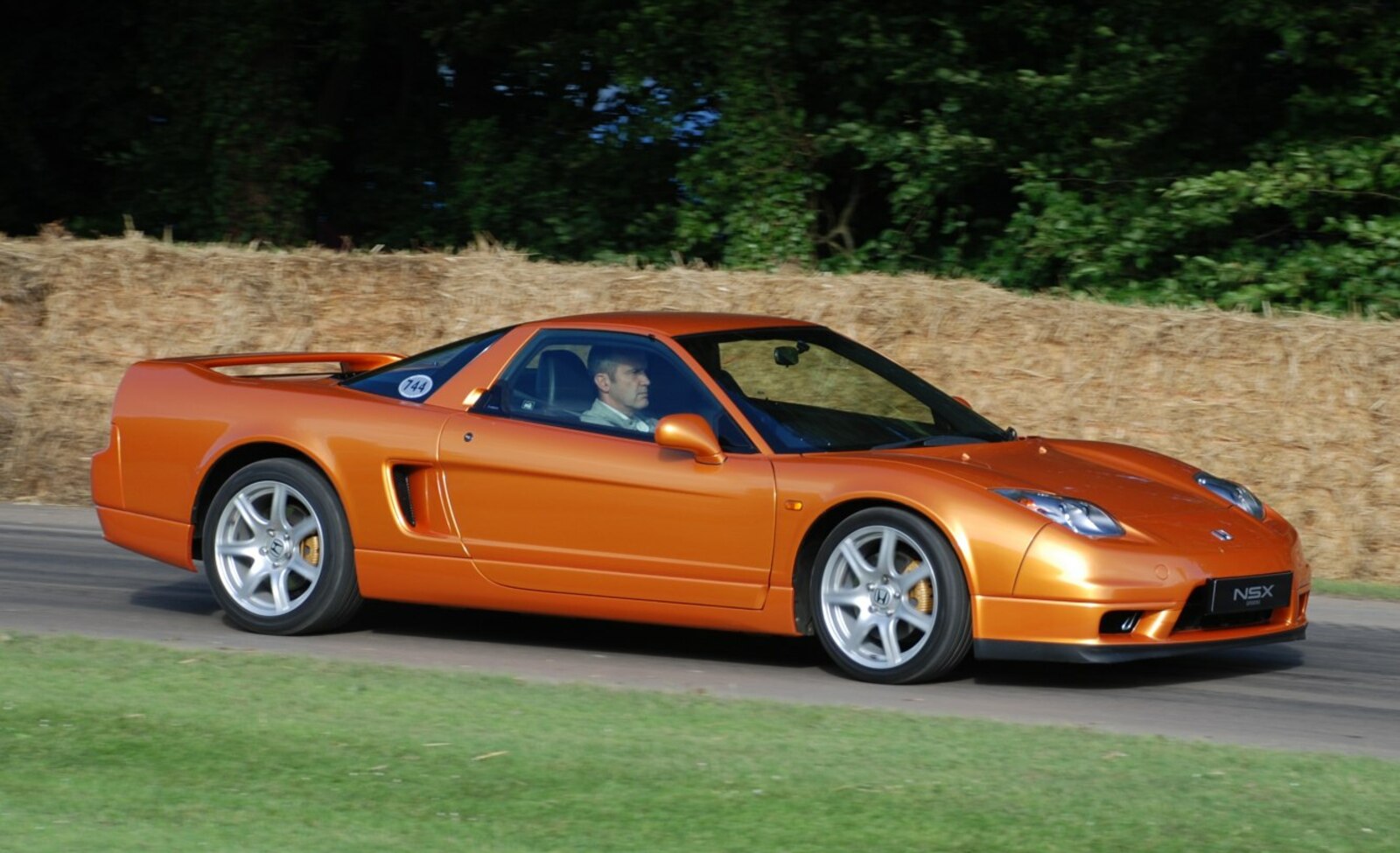

2002 Honda NSX I Coupe (facelift 2002) 3.2 V6 (280 Hp)



2002 Honda NSX I Coupe (facelift 2002) 3.2 V6 (280 Hp)

GENERAL

Brand:Honda
Model:NSX I
Modification (Engine):3.2 V6 (280 Hp)
Body Type:2-doors, coupé
Transmission:6 speed manual transmission
Number Of Seats:2
Segment:h (sport)
Introduction:july 2002
End:june 2005

DRIVE

Drive Wheel :rear
Engine/motor Type:fuel engine
Fuel Type:gasoline
Power:206 kw (280 hp)
Total Max. Power (kW):206
Total Max. Power (hp):280
Max Torque:298 nm

FUEL ENGINE

Cylinders:6, v engine
Valves Per Cylinder:4
Engine Capacity:3179 cc
Bore X Stroke:93,0 x 78,0 mm
Compression Ratio:10,2 :1
Max Power:206 kw (280 hp)
Power (kW):206
Power (hp):280
Max. Power Rpm:7300 rpm
Max Torque:298 nm
Max Torque Rpm:5300 rpm
Fuel System:multipoint injection
Valve Actuation:dohc
Turbo:no
Catalyst:regular
Fuel Tank Capacity:70 l

PERFORMANCE

Top Speed:270 km/h
Acceleration 0-100 Km / H:5,7 s

CONSUMPTION (NEDC)

Urban Consumption:17,9 l/100km
Extra-urban Consumption:9,1 l/100km
Combined Consumption:12,4 l/100km
Co2 Emissions:291 g/km
Energy Label:g

CHASSIS

Front Suspension:independent, wishbone
Rear Suspension:independent, wishbone
Front Suspension:coil springs
Rear Suspension:coil springs
Front Stabilizer:yes
Rear Stabilizer:yes
Front Brakes:ventilated discs, 298 mm
Rear Brakes:discs, 303 mm
Front Tire Size:215/40yr17
Rear Tire Size:245/40yr17
Turning Circle:11,6 m

TRANSMISSION

1st Gear:3,07:1
2nd Gear:1,96:1
3rd Gear:1,43:1
4th Gear:1,13:1
5th Gear:0,91:1
6th Gear:0,72:1
7th Gear:
8th Gear:
9th Gear:
Reverse Gear:3,19:1
Final Drive:4,06:1
Rpm At 120 Km/h (theoretical):3.100 rpm

WEIGHTS

Curb Weight:1445 kg
Max. Payload:165 kg
Max. Permissible Mass:1610 kg
Max. Front Axle Mass:- kg
Max. Rear Axle Mass:- kg
Max. Braked Trailer Mass:- kg
Max. Unbraked Trailer Mass:- kg
Max. Nose Weight:- kg
Max. Roof Load:- kg

LUGGAGE / LOAD COMPARTMENT

Cargo Capacity:154 l
Length Min./max.:470 mm / -
Width Min./max.:
Height:
Height Of Lift Threshold:820 mm

EXTERIOR SIZES

Length:4425 mm
Width:1810 mm
Height:1170 mm
Wheelbase:2530 mm
Front Track Width:1510 mm
Rear Track Width:1510 mm
Ground Clearance:131 mm
